Yantai Xinyu Heavy Industry Technology Co., Ltd.

Mining equipment
engineered for the
underground.

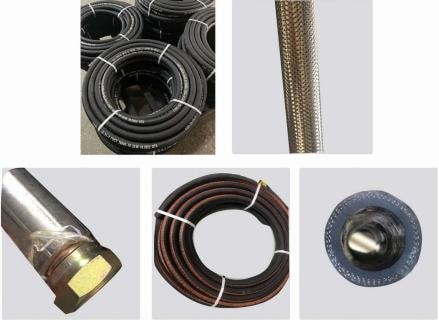

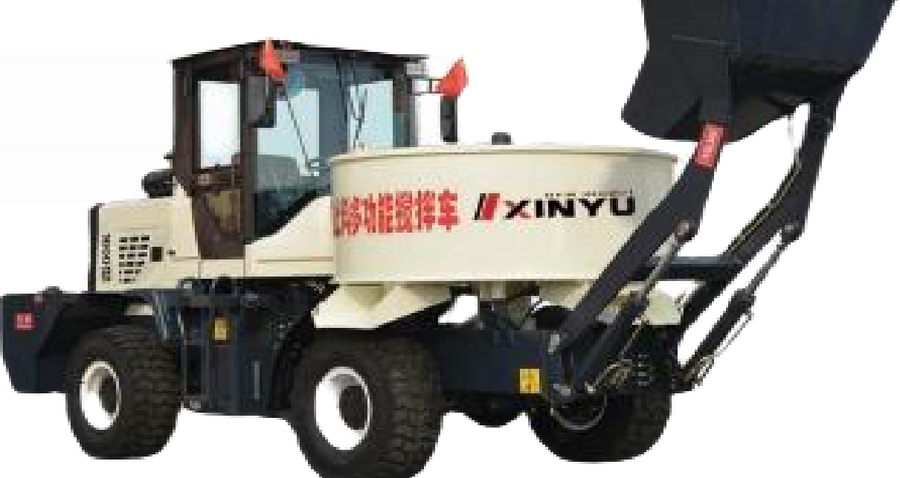

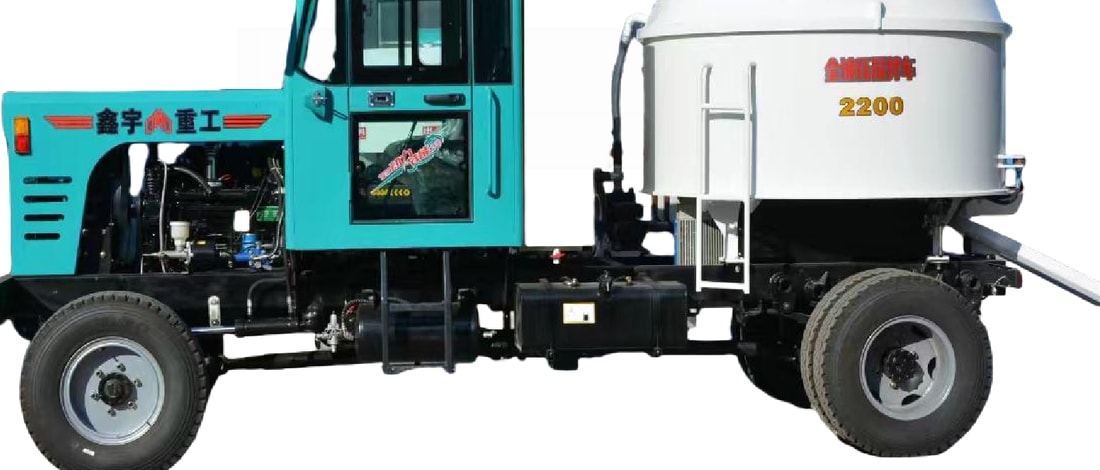

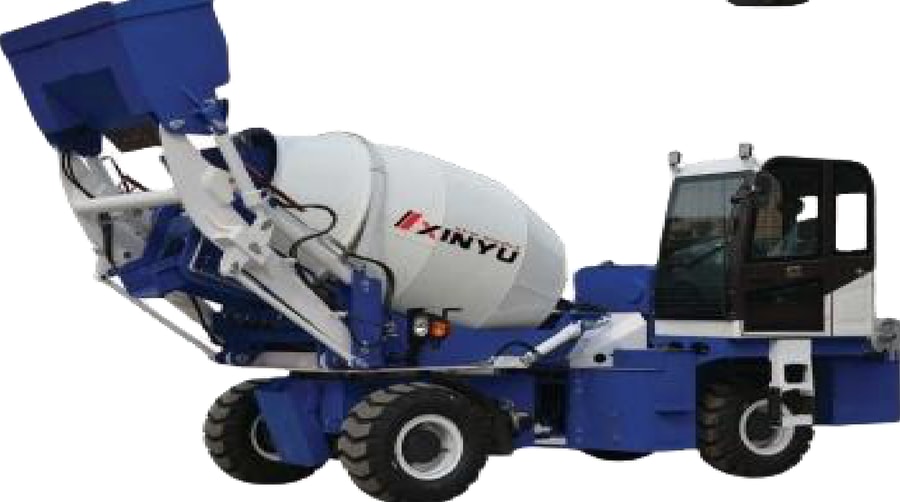

A specialist manufacturer of construction machinery — compact tire loaders, mining scrapers, transport mixers and mining hose. Designed for narrow tunnels, hard rock and the shifts that never stop.

Explore the range Talk to an engineer

Innovation · Efficiency · Integrity · Win-Win

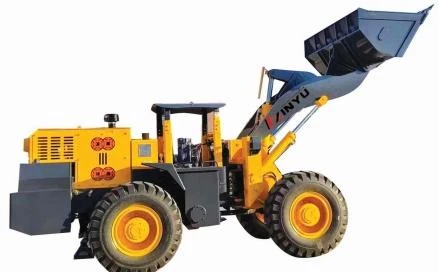

LZ30E heavy-duty tire loader
LZ30E 3,500 kg rated load · 1.8–2.0 m³ bucket

Company profile

Quality is in place.

Yantai Xinyu Heavy Industry Technology Co., Ltd. is a professional manufacturer of construction machinery and a specialised producer of small engineering tire loaders. We develop, research and build trackless equipment for underground work.

The plant combines advanced processing equipment, strong technical capability and modern management — supported by a comprehensive hydraulic pump and motor test bench, an independent enterprise technology centre, complete production capacity and a fast after-sales service system.

“Technology innovation as the driving force, market demand as the goal, user experience at the centre — integrity in management, excellence as the purpose, and value for our customers as the mission.” Han Chunyu · General Manager
  • Hydraulic test bench Comprehensive pump and motor test rig for every unit before dispatch.
  • Technology centre Independent R&D for trackless underground equipment.
  • Full production capacity Complete manufacturing chain, from fabrication to final assembly.
  • After-sales system Convenient and fast service, wherever the machine is working.
Shahe Industrial Park, Laizhou City, Shandong At the junction of Yantai, Qingdao and Weifang
  • Weiwu Expressway
  • Dalailong Railway
  • G206 National Highway
  • Laizhou Port · 10,000-ton berths

Product range

Five series. One standard.

Every machine is configured for the job it will actually do — engine, axle, bucket and canopy chosen to suit the tunnel, the ore and the shift pattern.

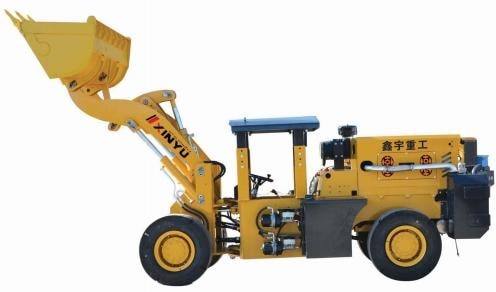

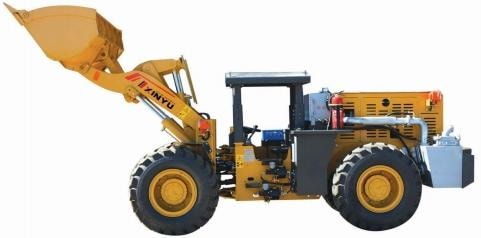

928 mine loader
928 mine loader

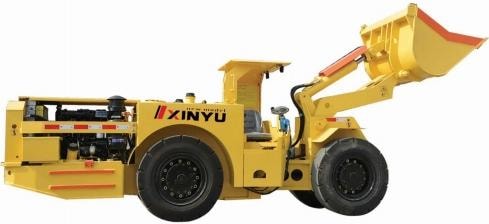

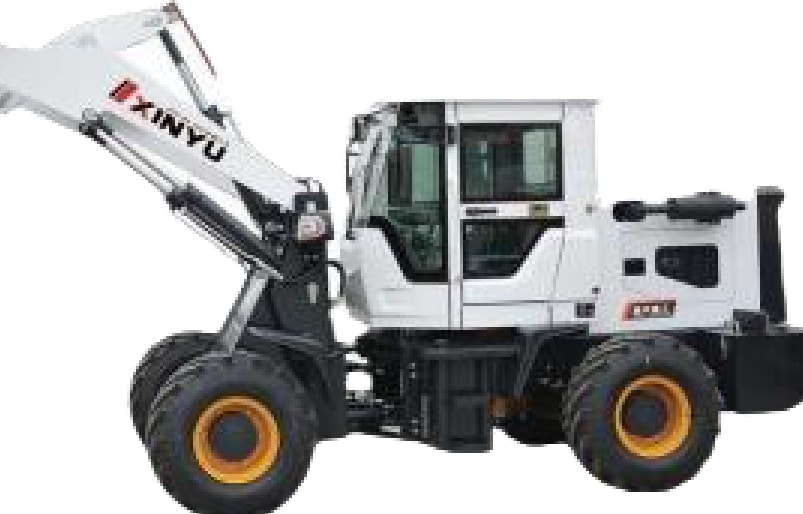

Heavy-duty tire loader

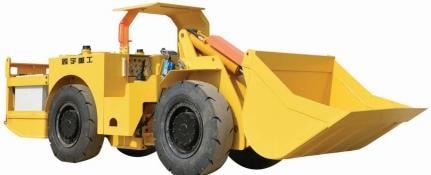

Loader, front view

Mining Scraper Series

Trackless loaders built for narrow tunnels, low headings and hard-rock headings — the LZ30E tire loader and the 928 mine loader.

  • Variable-displacement pumps and motors originating from Sauer, USA
  • Heavy-duty front and rear drive axles — greater load capacity, markedly lower failure rate
  • Pilot control with fully hydraulic steering — easy, flexible operation
  • Centralised lubrication system fitted as standard across the machine
  • Flexible cable winding device with automatic protection for over-released cables
  • Compact, articulated chassis with a central hinge — low failure rate, high comfort

OptionalVisual-distance remote control / remote video control · automatic fire-extinguishing system

  • 2,000–3,500 kg rated load
  • 0.8–2.0 m³ bucket
  • 25–30° gradeability
  • 75–90 kN traction
Worldwide shipping FOB, CFR and CIF from Qingdao / Laizhou Port.
OEM & ODM Private label, custom colour and configuration accepted.
12-month warranty On hydraulic components, with spare-parts support.
Reply within 24 h Technical answers and quotations, in English.

Basic parameters

The numbers that matter.

Three flagship models, side by side. Full parameter tables for every variant are in the catalogue.

Mining scraper

928 mine loader

Rated load
2,000 kg
Bucket capacity
0.8 m³
Operating weight
5,000 kg
Max traction force
90 kN
Max rising power
≥ 92 kN
Max gradeability
30°
Max unloading height
1,800 mm
Max unloading distance
1,080 mm
Overall size L×W×H
5,200 × 1,400/1,600 × 1,750 mm
Min turning radius
4,200 mm
Engine
498T · 4-cyl · 85 kW
Max speed
30 km/h
Tyres
255-70/12-16.5
Flagship

LZ30E tire loader

Rated load capacity
3,500 kg
Bucket capacity
1.8–2.0 m³
Whole machine weight
10,800 kg
Max traction force
75 kN
Max digging force
90 kN
Max climbing ability
25°
Max lifting height
4,200 mm
Max unloading height
2,700 mm
Unloading distance
1,350 mm
Overall size L×W×H
6,000 × 1,900/2,300 × 2,450 mm
Min turning radius
3,200 inside / 6,200 outside mm
Steering angle
36° ± 1 · rear swing ± 12
Diesel engine
Dongfanghong 6110 · 103 kW @ 2,300 rpm
Tyres
1200-24 / 17.5-25

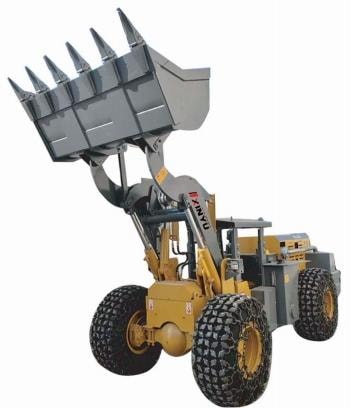

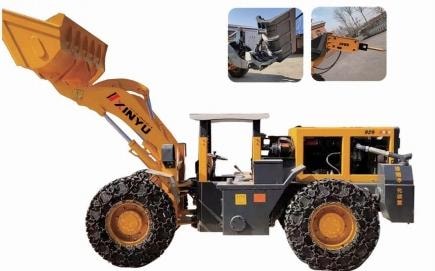

Mining loader

929 mine loader

Max load
≤ 3,000 kg
Rated load
2,000 kg
Rated bucket capacity
0.8 m³
Total weight
6,500 kg
Max tractive force
45 kN
Max rising power
48 kN
Max gradeability
30°
Max unloading height
1,750 mm
Max unloading distance
950 mm
Overall size L×W×H
5,600 × 1,858 × 1,650 mm
Min turning radius
4,600 mm
Hydraulic pressure
16 MPa · bucket lift 5 s
Engine
Dongfanghong 4105 turbo · 70/73.5 kW
Tyres
15/70-18

Product configuration, colour, specifications and parameters are subject to change without prior notice and are based on the actual product.

Certificate of honour

Tested before it ships.

Every hydraulic pump and motor is run on our own test bench. Frames are fabricated from Q460 high-density board, and mining-grade tyres, alloy-cast bucket blades and sealed pin shafts are fitted as standard — so the machine survives the tunnel, not just the demo.

  • Comprehensive hydraulic pump & motor test bench
  • Independent enterprise technology centre
  • Q460 high-density frame with alloy-cast wear parts
  • Centralised lubrication and secondary water filtration
  • 12-month hydraulic component warranty on mixers
  • Convenient, fast after-sales service system
Certificates of honour and qualification
Certificates of honour & product qualification

Get in touch

Let's spec your machine.

Tell us the tunnel, the ore and the shift. We will recommend the engine, axle, bucket and canopy — and quote it.
